Linear taper potentiometer with 5kR resistance and 20% tolerance. Features conductive plastic technology and a maximum power dissipation of 50mW. Designed for through-hole mounting with a single gang and single turn. Operating temperature range is -20°C to 70°C.
Resistance5kR
MountingThrough Hole, Snap in, Brackets
Quick Jump:
Technical Specifications
TT P120K-F20BR5K technical specifications.
General
| Actuator Diameter | 0.236inch |
| Actuator Length | 0.787inch |
| Lead Free | Lead Free |
| Length | 26mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Power Dissipation | 50mW |
| Military Standard | Not |
| Mount | Through Hole, Snap in, Brackets |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Resistance | 5kR |
| Resistance Tolerance | 20% |
| Resistor Type | Conductive Plastic |
| RoHS Compliant | Yes |
| Series | P120 |
| Taper | Linear |
| Technology | CONDUCTIVE PLASTIC |
| Termination | Pin |
| Tolerance | 20% |
| Type | Potentiometer |
Compliance
| RoHS | Compliant |
Datasheet
TT P120K-F20BR5K Datasheet
Download the complete datasheet for TT P120K-F20BR5K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

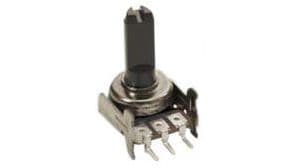

Product Images
