Precision thin film chip resistor, 100kΩ resistance with 0.1% tolerance. Rated for 200V, this surface mount component offers 0.333W power dissipation and a 25ppm/°C temperature coefficient. Features include moisture resistance and anti-sulfur properties, housed in a 1206 (3216 metric) case. RoHS compliant and lead-free.
Package1206
Resistance100kR
Voltage Rating200V
Quick Jump:
Technical Specifications
TT PFC-W1206LF-03-1003-B technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Rectangular |
| Depth | 1.6mm |
| Features | Moisture Resistant, Anti-Sulfur |
| Height | 0.6mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 333mW |
| Military Standard | Not |
| Number of Terminations | 2 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Resistance | 100kR |
| Resistance Tolerance | 0.1% |
| Resistor Type | Thin Film |
| RoHS Compliant | Yes |
| Series | PFC - Precision |
| Size Code | 1206 |
| Termination | SMD/SMT |
| Tolerance | 0.1% |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
| Weight | 0.000571oz |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
TT PFC-W1206LF-03-1003-B Datasheet
Download the complete datasheet for TT PFC-W1206LF-03-1003-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

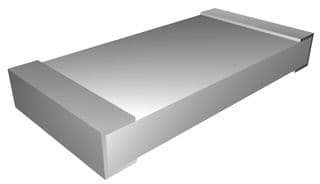

Product Images
