This 100V axial wirewound resistor has a resistance of 1.2kR with a tolerance of 5%. It is rated for a maximum power dissipation of 3W and operates within a temperature range of -55°C to 200°C. The resistor is packaged in a single unit on a cut tape and is compliant with RoHS regulations.
PackageAxial
Resistance1.2kR
Voltage Rating100V
Quick Jump:
Technical Specifications
TT W21 1K2 JI technical specifications.
General
| Package/Case | Axial |
| Diameter | 5.6mm |
| Lead Length | 22.7mm |
| Length | 0.5inch |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 3W |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| Resistance | 1.2kR |
| Resistance Tolerance | 5% |
| Resistor Type | Wirewound |
| RoHS Compliant | Yes |
| Series | W20 |
| Technology | WIRE WOUND |
| Termination | Axial |
| Tolerance | 5% |
| Voltage Rating | 100V |
Compliance
| RoHS | Compliant |
Datasheet
TT W21 1K2 JI Datasheet
Download the complete datasheet for TT W21 1K2 JI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

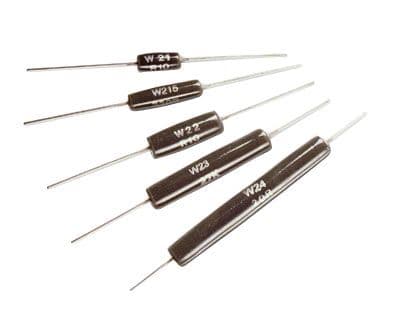

Product Images
