Technical Specifications
TT WH5-100RJI technical specifications.
General
| Height | 9mm |
| Length | 17mm |
| Max Operating Temperature | 200°C |
| Min Operating Temperature | -55°C |
| Package Quantity | 250 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Resistance | 100R |
| Resistance Tolerance | 5% |
| Resistor Type | Wirewound |
| RoHS Compliant | Yes |
| Series | WH |
| Termination | Solder |
| Tolerance | 5% |
| Voltage Rating | 160V |
| DC Rated Voltage | 160V |
| Width | 17mm |
Compliance
| RoHS | Compliant |
Datasheet
TT WH5-100RJI Datasheet
Download the complete datasheet for TT WH5-100RJI to view detailed technical specifications.
No datasheet is available for this part.

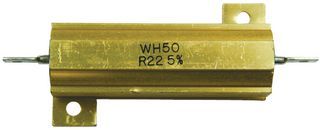

Product Images
