The Turck BI1-EH04-AN6X is a flush mount sensor with a maximum operating temperature of 70°C and a minimum operating temperature of -25°C. It has a maximum supply voltage of 30V and a minimum supply voltage of 10V. The sensor is rated for 100mA of RMS current and is compliant with IP67 ratings. It has a length of 30mm and is terminated with a cable.
Package100
MountingFlush
Quick Jump:
Technical Specifications
Turck BI1-EH04-AN6X technical specifications.
General
| Package/Case | 100 |
| Length | 30mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 10V |
| Mount | Flush |
| Operating Supply Voltage | 30V |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 100mA |
| RoHS Compliant | No |
| Termination | Cable |
Compliance
| RoHS | Not Compliant |
Datasheet
Turck BI1-EH04-AN6X Datasheet
Download the complete datasheet for Turck BI1-EH04-AN6X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

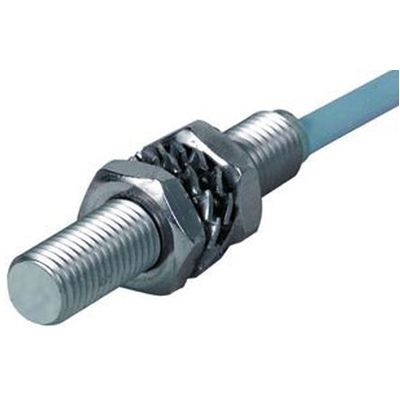

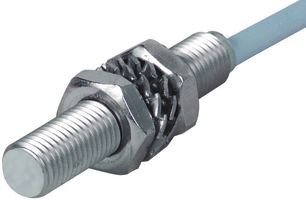

Product Images
