This is a 27MHz crystal with a frequency stability of 30ppm and an equivalent series resistance of 50R. It has a load capacitance of 18pF and is designed for surface mount applications. The crystal operates within a temperature range of -40°C to 70°C and is compliant with RoHS regulations. It is available in a package quantity of 1000 units, packaged in tape and reel.
Frequency27MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
TXC 7A-27.000MAAJ-T technical specifications.
General
| Package/Case | SMD/SMT |
| Depth | 3.2mm |
| ESR (Equivalent Series Resistance) | 50R |
| Frequency | 27MHz |
| Frequency Stability | 30ppm |
| Frequency Tolerance | 30ppm |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Load Capacitance | 18pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 7A |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
TXC 7A-27.000MAAJ-T Datasheet
Download the complete datasheet for TXC 7A-27.000MAAJ-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

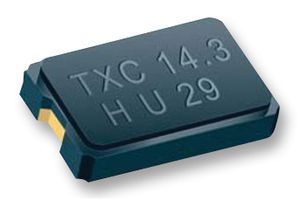

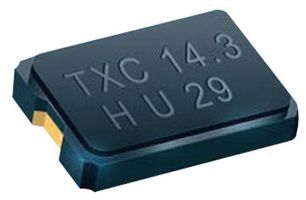

Product Images
