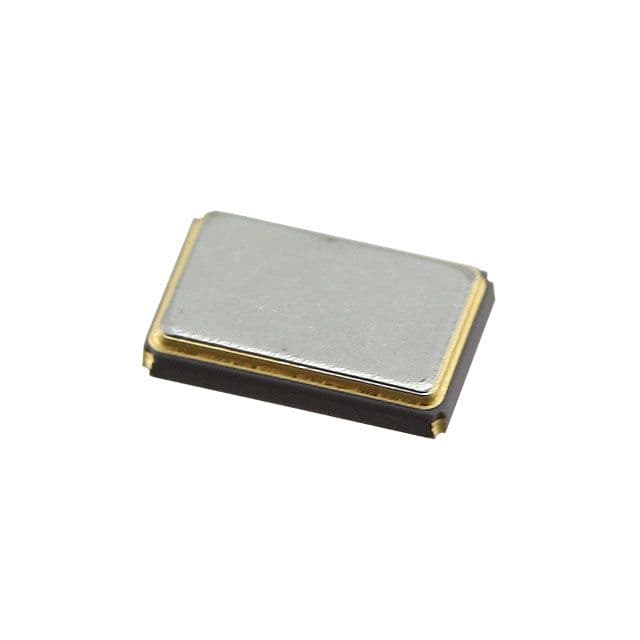

This SMD crystal operates at a frequency of 12.288MHz with a stability of 30ppm and an equivalent series resistance of 40 ohms. It is designed for surface mount applications and has a maximum operating temperature of 70°C and a minimum operating temperature of -20°C. The crystal is packaged in a cut tape format with a package quantity of one.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TXC 7B-12.288MAAE-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 40R |
| Frequency | 12.288MHz |
| Frequency Stability | 30ppm |
| Frequency Tolerance | 30ppm |
| Height | 0.035inch |
| Length | 0.197inch |
| Load Capacitance | 12pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Cut Tape |
| Series | 7B |
| Width | 0.126inch |
| RoHS | Compliant |
