This 26MHz crystal has a frequency stability of 10ppm and a tolerance of 10ppm. It operates within a temperature range of -10°C to 70°C. The crystal is packaged in a surface mount package with a depth of 3.2mm and a height of 0.041inch. It has a load capacitance of 10pF and an equivalent series resistance of 40R.
Frequency26MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
TXC 7B-26.000MEEQ-T technical specifications.
General
| Package/Case | SMD/SMT |
| Depth | 3.2mm |
| ESR (Equivalent Series Resistance) | 40R |
| Frequency | 26MHz |
| Frequency Stability | 10ppm |
| Frequency Tolerance | 10ppm |
| Height | 0.041inch |
| Length | 5mm |
| Load Capacitance | 10pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Series | 7B |
| Termination | SMD/SMT |
| Tolerance | 10ppm |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
TXC 7B-26.000MEEQ-T Datasheet
Download the complete datasheet for TXC 7B-26.000MEEQ-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

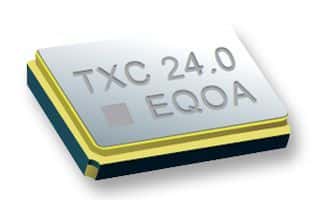

Product Images
