The 7B-37.500MEEE-T crystal from TXC is a surface-mount device with a frequency of 37.5MHz and a stability of 10ppm. It operates within a temperature range of -40°C to 85°C and has a load capacitance of 12pF. The crystal is packaged in a cut tape format with 1000 units per reel.
Frequency37.5MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
TXC 7B-37.500MEEE-T technical specifications.
General
| Package/Case | SMD/SMT |
| ESR (Equivalent Series Resistance) | 40R |
| Frequency | 37.5MHz |
| Frequency Stability | 10ppm |
| Frequency Tolerance | 10ppm |
| Height | 0.9mm |
| Length | 5mm |
| Load Capacitance | 12pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| Series | 7B |
| Termination | SMD/SMT |
| Tolerance | 10ppm |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
TXC 7B-37.500MEEE-T Datasheet
Download the complete datasheet for TXC 7B-37.500MEEE-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

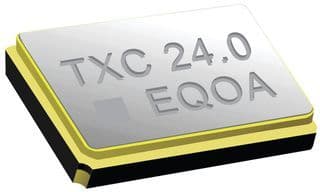

Product Images
