27.12MHz fundamental quartz crystal, SMD/SMT package, 3.2mm length, 2.5mm width, 0.7mm height, and 2.5mm depth. Features 10ppm frequency tolerance and stability, 10pF load capacitance, and 60R ESR. Operates within a -10°C to 70°C temperature range. RoHS compliant and lead-free.
Frequency27.12MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
TXC 7M-27.120MEEQ-T technical specifications.
General
Package/Case
SMD/SMT
Depth
2.5mm
ESR (Equivalent Series Resistance)
60R
Frequency
27.12MHz
Frequency Stability
10ppm
Frequency Tolerance
10ppm
Height
0.7mm
Lead Free
Lead Free
Length
3.2mm
Load Capacitance
10pF
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
7M
Termination
SMD/SMT
Tolerance
10ppm
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
TXC 7M-27.120MEEQ-T Datasheet
Download the complete datasheet for TXC 7M-27.120MEEQ-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

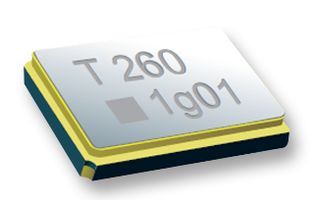

Product Images
