CMOS oscillator with a frequency of 32.768kHz, designed for surface mount applications. Features a 3.2 x 2.5mm SMD/SMT package with a load capacitance of 15pF and a frequency stability of 50ppm. Operates at 3.3V with a maximum supply current of 3mA, across an operating temperature range of -40°C to 85°C. This RoHS compliant component is supplied on tape and reel.
Frequency32.768kHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
TXC 7XZ-32.768KBE-T technical specifications.
General
| Package/Case | SMD/SMT |
| Depth | 2.5mm |
| Frequency | 32.768kHz |
| Frequency Stability | 50ppm |
| Height | 0.043inch |
| Lead Free | Lead Free |
| Length | 0.126inch |
| Load Capacitance | 15pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 3mA |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 7XZ |
| Termination | SMD/SMT |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
TXC 7XZ-32.768KBE-T Datasheet
Download the complete datasheet for TXC 7XZ-32.768KBE-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

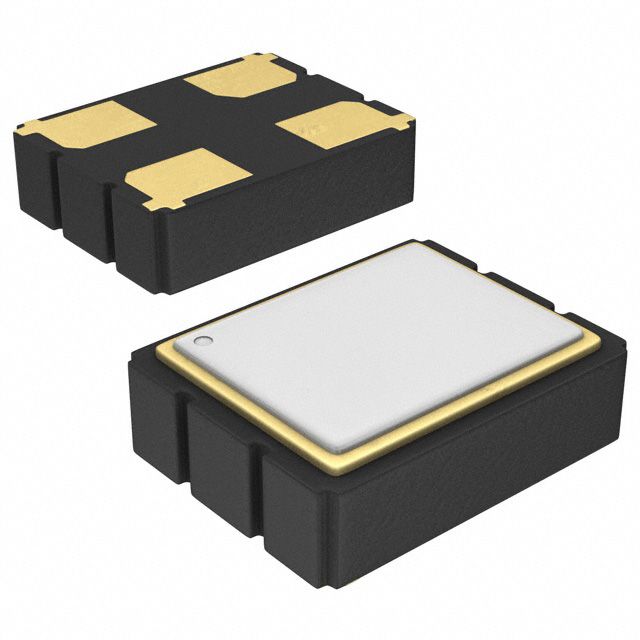

Product Images
