Temperature Compensated Crystal Oscillator (TCXO) operating at 38.4MHz with a sine wave output. Features exceptional frequency stability of 0.5ppm across an operating temperature range of -30°C to 85°C. This surface mount device is housed in a compact SMD/SMT package measuring 0.079 x 0.063 x 0.031 inches. It exhibits a maximum supply current of 2mA and is supplied in cut tape packaging, with 250 units per package. RoHS compliant.
Frequency38.4MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
TXC 7Z-38.400MBG-T technical specifications.
General
| Package/Case | SMD/SMT |
| Frequency | 38.4MHz |
| Frequency Stability | 0.5ppm |
| Height | 0.031inch |
| Length | 0.079inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Supply Current | 2mA |
| Mount | Surface Mount |
| Package Quantity | 250 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | 7Z |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
TXC 7Z-38.400MBG-T Datasheet
Download the complete datasheet for TXC 7Z-38.400MBG-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

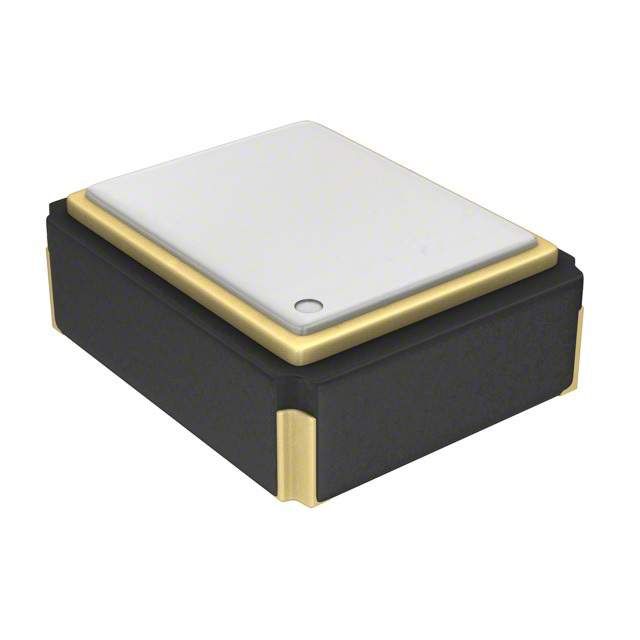

Product Images
