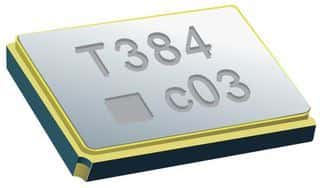

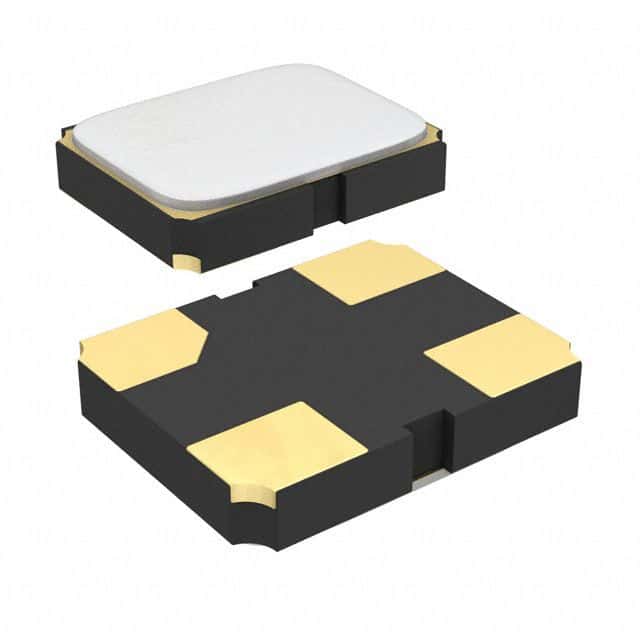

SMD crystal oscillator operating at 24MHz with a load capacitance of 18pF. Features a frequency tolerance and stability of 30ppm, and an ESR of 100 Ohms. Packaged in a compact 2 x 1.6 x 0.5mm SMD/SMT case, this component is designed for surface mounting and operates within a temperature range of -10°C to 70°C. Supplied on tape and reel, it is lead-free compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TXC 8Y-24.000MAAJ-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TXC 8Y-24.000MAAJ-T technical specifications.
| Package/Case | SMD/SMT |
| Depth | 1.6mm |
| ESR (Equivalent Series Resistance) | 100R |
| Frequency | 24MHz |
| Frequency Stability | 30ppm |
| Frequency Tolerance | 30ppm |
| Height | 0.5mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Load Capacitance | 18pF |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Series | 8Y |
| Termination | SMD/SMT |
| Tolerance | 30ppm |
| Width | 1.6mm |
| RoHS | Compliant |
