Frequency32.768kHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
TXC 9HT10-32.768KBZF-T technical specifications.
General
Package/Case
SMD/SMT
Depth
1.5mm
ESR (Equivalent Series Resistance)
70kR
Frequency
32.768kHz
Frequency Tolerance
50ppm
Height
0.75mm
Lead Free
Lead Free
Length
3.2mm
Load Capacitance
12.5pF
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Reach SVHC Compliant
No
Series
9HT10
Termination
SMD/SMT
Tolerance
20ppm
Width
1.5mm
Compliance
RoHS
Compliant
Datasheet
TXC 9HT10-32.768KBZF-T Datasheet
Download the complete datasheet for TXC 9HT10-32.768KBZF-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

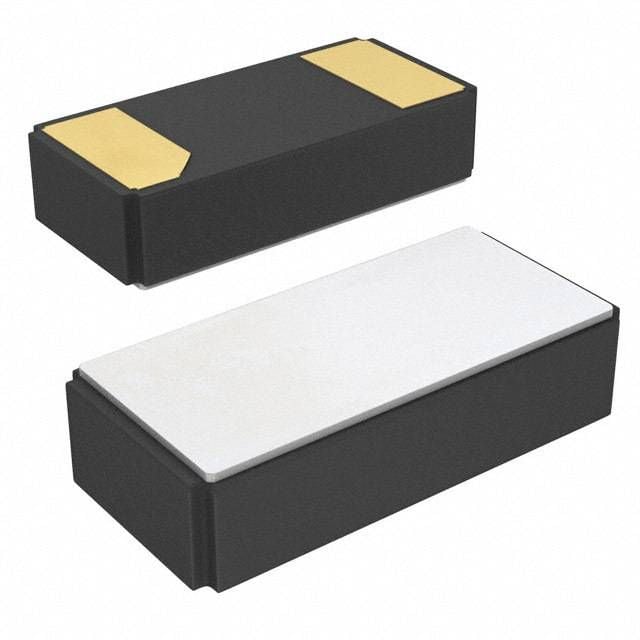

Product Images
