Technical Specifications
TXC 9HT11-32.768KBZF-T technical specifications.
General
| Package/Case | SMD/SMT |
| Depth | 1.2mm |
| ESR (Equivalent Series Resistance) | 90kR |
| Frequency | 32.768kHz |
| Frequency Tolerance | 50ppm |
| Height | 0.024inch |
| Lead Free | Lead Free |
| Length | 0.079inch |
| Load Capacitance | 12.5pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Series | 9HT11 |
| Width | 0.047inch |
Compliance
| RoHS | Compliant |
Datasheet
TXC 9HT11-32.768KBZF-T Datasheet
Download the complete datasheet for TXC 9HT11-32.768KBZF-T to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

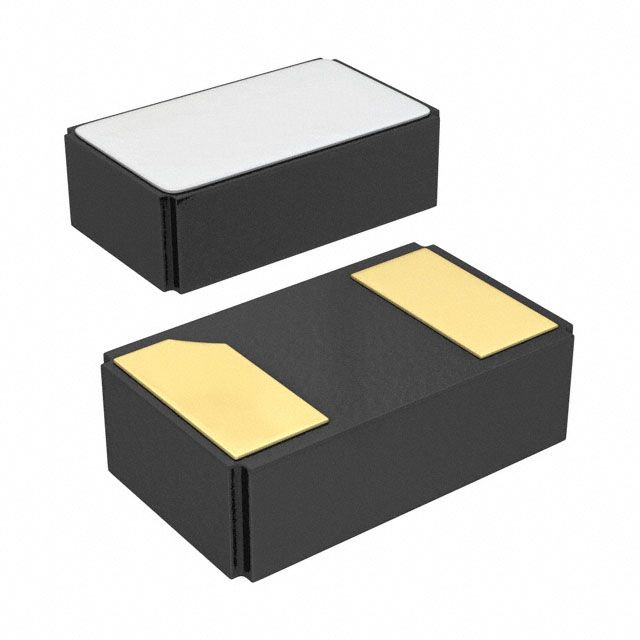

Product Images
