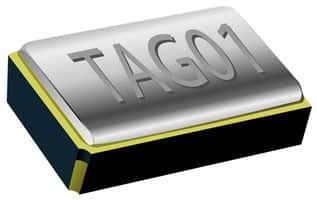

SMD crystal oscillator operating at 32.768kHz with a load capacitance of 12.5pF. Features a frequency tolerance and stability of 20ppm, and an ESR of 90kR. Encased in a compact SMD/SMT package measuring 2mm x 1.2mm x 0.6mm, it supports surface mounting and operates within a temperature range of -40°C to 85°C. This lead-free, RoHS-compliant component is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TXC 9HT11-32.768KDZF-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Depth | 1.2mm |
| ESR (Equivalent Series Resistance) | 90kR |
| Frequency | 32.768kHz |
| Frequency Stability | 20ppm |
| Frequency Tolerance | 20ppm |
| Height | 0.6mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Load Capacitance | 12.5pF |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | 9HT11 |
| Series Resistance | 90kR |
| Termination | SMD/SMT |
| Width | 1.2mm |
| RoHS | Compliant |
