Aluminum electrolytic capacitor, polarized, 330µF capacitance, 10V DC rated voltage, and 20% tolerance. Features 19mΩ ESR, 3.39A ripple current, and 660µA leakage current. Operates from -55°C to 105°C with a 2000-hour life rating. Radial package with 8mm diameter, 8.3mm height, 7.7mm length, and 8.3mm width. Surface mount termination with 3.1mm lead pitch and 1.1mm lead diameter. RoHS compliant and lead-free.
PackageRadial
Voltage10V
Capacitance330uF
Voltage Rating10V
Quick Jump:
Technical Specifications
United Chemi-Con APXE100ARA331MH80G technical specifications.
General
| Capacitance | 330uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 8mm |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 19mR |
| Height | 8.3mm |
| Lead Diameter | 1.1mm |
| Lead Free | Lead Free |
| Lead Pitch | 3.1mm |
| Leakage Current | 660uA |
| Length | 7.7mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ripple Current | 3.39A |
| RoHS Compliant | Yes |
| Series | NPCAP™-PXE |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 8.3mm |
Compliance
| RoHS | Compliant |
Datasheet
United Chemi-Con APXE100ARA331MH80G Datasheet
Download the complete datasheet for United Chemi-Con APXE100ARA331MH80G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

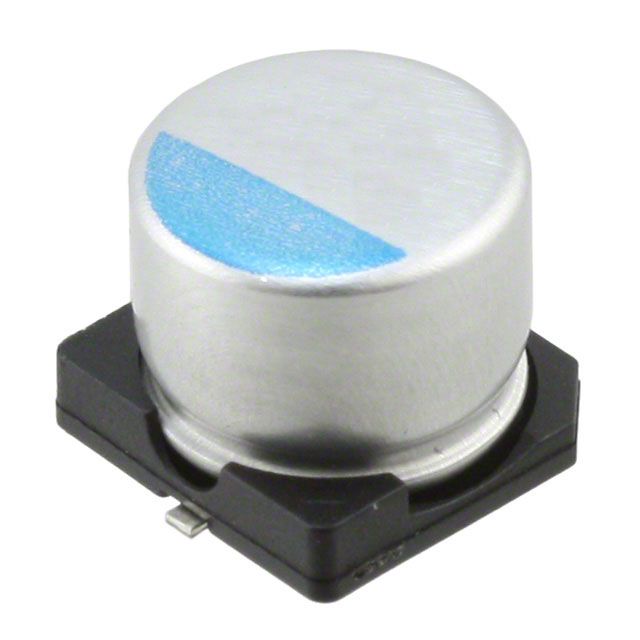

Product Images
