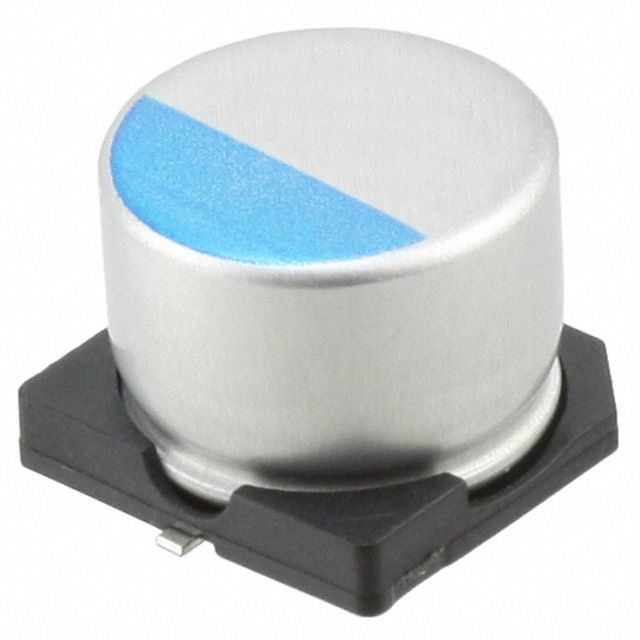

Polarized aluminum electrolytic capacitor with 470µF capacitance and 10V DC rating. Features 20% tolerance, 19mΩ ESR, and 3.8A ripple current capability. Operates across a -55°C to 105°C temperature range with a 2000-hour life expectancy. Supplied in a radial, cylindrical construction with SMD/SMT termination, packaged in tape and reel.
PackageRadial
Capacitance470uF
Resistance0.019R
Voltage Rating10V
Quick Jump:
Technical Specifications
United Chemi-Con APXE100ARA471MJ80G technical specifications.
General
| Capacitance | 470uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Dissipation Factor | 0.12% |
| ESR (Equivalent Series Resistance) | 19mR |
| Height | 10.3mm |
| Height - Seated (Max) | 0.303inch |
| Leakage Current | 940uA |
| Length | 7.7mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 0.019R |
| Ripple Current | 3.8A |
| RoHS Compliant | Yes |
| Series | NPCAP™-PXE |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 10.3mm |
Compliance
| RoHS | Compliant |
