Aluminum electrolytic capacitor, 10µF capacitance, 400V DC rated voltage, 20% tolerance. Features a radial package with a 5mm lead pitch, 0.6mm lead diameter, and tin contact plating. Operates from -40°C to 105°C with a 1000-hour life rating at rated voltage. Ripple current capability is 80mA at 120kHz. RoHS compliant and lead-free.
PackageRadial
Voltage200V
Capacitance10uF
Voltage Rating400V
Quick Jump:
Technical Specifications
United Chemi-Con EKMG401ELL100MJ20S technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Radial |
| Construction | RADIAL |
| Contact Plating | Tin |
| Diameter | 10mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 24% |
| Height | 20mm |
| Lead Diameter | 0.6mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Straight |
| Length | 20mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Package Quantity | 2000 |
| Packaging | Bulk |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 80mA |
| RoHS Compliant | Yes |
| Series | KMG |
| Termination | Radial |
| Test Frequency | 120kHz |
| Tolerance | 20% |
| Voltage | 200V |
| Voltage Rating | 400V |
| DC Rated Voltage | 400V |
Compliance
| RoHS | Compliant |
Datasheet
United Chemi-Con EKMG401ELL100MJ20S Datasheet
Download the complete datasheet for United Chemi-Con EKMG401ELL100MJ20S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

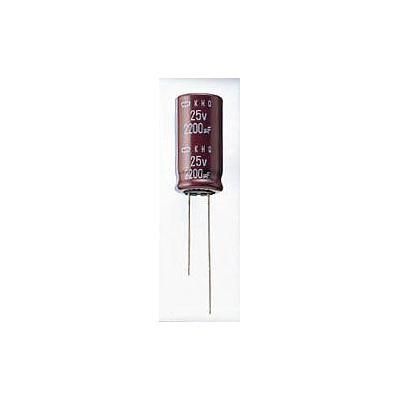

Product Images
