Polarized aluminum electrolytic capacitor with 1000µF capacitance and 63V DC rated voltage. Features a 20% tolerance, 105°C maximum operating temperature, and 930mA ripple current. Radial package with 7.5mm lead pitch and 0.8mm lead diameter, designed for through-hole mounting. Dimensions include 16mm diameter and 25mm height/length.
PackageRadial
Capacitance1mF
Voltage Rating63V
MountingThrough Hole
Quick Jump:
Technical Specifications
United Chemi-Con EKMG630ELL102ML25S technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | RADIAL |
| Diameter | 16mm |
| Dielectric Material | Aluminium |
| Height | 25mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Length | 25mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 500 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 930mA |
| RoHS Compliant | Yes |
| Series | KMG |
| Termination | Radial |
| Tolerance | 20% |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
Compliance
| RoHS | Compliant |
Datasheet
United Chemi-Con EKMG630ELL102ML25S Datasheet
Download the complete datasheet for United Chemi-Con EKMG630ELL102ML25S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

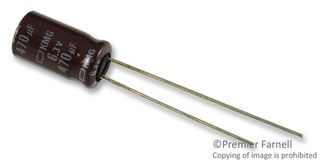

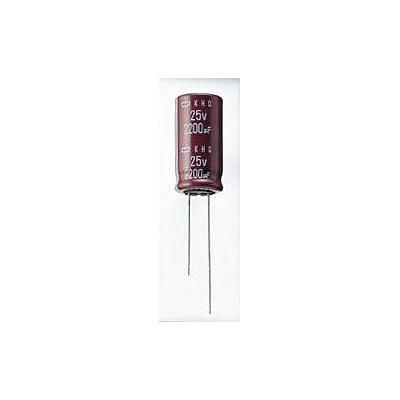

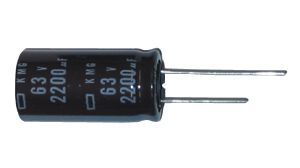

Product Images
