Aluminum electrolytic capacitor with 1000µF capacitance and 200V DC rated voltage. Features 20% tolerance, 2.3A ripple current at 120Hz, and a dissipation factor of 0.15%. This through-hole component has a 10mm lead pitch, 2mm lead diameter, and snap-in termination. Operating temperature range is -25°C to 105°C with a 2000-hour life expectancy. Dimensions are 22mm diameter and 50mm height.
PackageRadial
Voltage200V
Capacitance1mF
Voltage Rating200V
Quick Jump:
Technical Specifications
United Chemi-Con EKMQ201VSN102MP50S technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Diameter | 22mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.15% |
| Height | 50mm |
| Height - Seated (Max) | 1.969inch |
| Lead Diameter | 2mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Length | 50mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Package Quantity | 200 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 2.3A |
| RoHS Compliant | Yes |
| Series | KMQ-LU |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage | 200V |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
Compliance
| RoHS | Compliant |
Datasheet
United Chemi-Con EKMQ201VSN102MP50S Datasheet
Download the complete datasheet for United Chemi-Con EKMQ201VSN102MP50S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

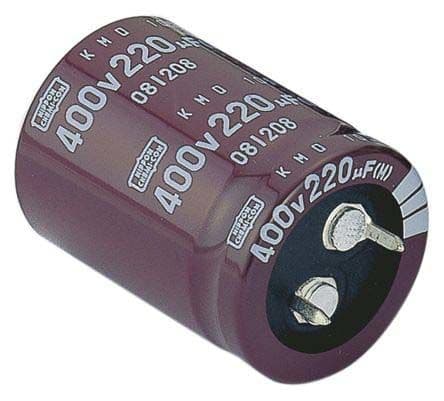

Product Images
