Aluminum electrolytic capacitor with 100µF capacitance and 450V DC rated voltage, featuring 20% tolerance. This radial component offers a 640mA ripple current at 120Hz, a dissipation factor of 0.2%, and a lifespan of 2000 hours at 105°C. Measuring 22mm in diameter and 30mm in length, it has a 10mm lead pitch with straight, tin-plated leads for through-hole mounting. Operating from -25°C to 105°C, this RoHS compliant capacitor utilizes snap-in termination.
PackageRadial
Voltage450V
Capacitance100uF
Voltage Rating450V
Quick Jump:
Technical Specifications
United Chemi-Con EKMQ451VSN101MP30S technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Radial |
| Contact Plating | Tin |
| Diameter | 22mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.2% |
| Lead Diameter | 2mm |
| Lead Free | Lead Free |
| Lead Pitch | 10mm |
| Lead/Base Style | Straight |
| Length | 30mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 640mA |
| RoHS Compliant | Yes |
| Series | KMQ |
| Termination | Snap in |
| Test Frequency | 120Hz |
| Tolerance | 20% |
| Voltage | 450V |
| Voltage Rating | 450V |
| DC Rated Voltage | 450V |
Compliance
| RoHS | Compliant |
Datasheet
United Chemi-Con EKMQ451VSN101MP30S Datasheet
Download the complete datasheet for United Chemi-Con EKMQ451VSN101MP30S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

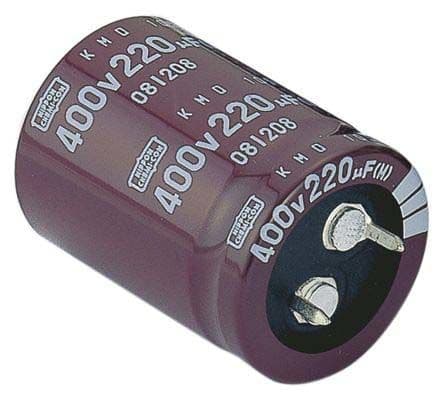

Product Images
