100µF, 35V radial aluminum electrolytic capacitor with 20% tolerance. Features 180mΩ ESR at 100MHz, 400mA ripple current, and 3µA leakage current. Operates from -55°C to 105°C with a 2000-hour lifespan. AEC-Q200 qualified, RoHS compliant, and lead-free. Dimensions: 6.3mm diameter, 15mm height, 2.5mm lead pitch, 0.5mm lead diameter.
PackageRadial
Voltage35V
Capacitance100uF
Voltage Rating35V
Quick Jump:
Technical Specifications
United Chemi-Con ELXZ350ELL101MF15D technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
RADIAL
Contact Plating
Tin
Diameter
6.3mm
Dielectric Material
Aluminium
Dissipation Factor
12%
ESR (Equivalent Series Resistance)
180mR
Height
15mm
Impedance
180mR
Lead Diameter
0.5mm
Lead Free
Lead Free
Lead Pitch
2.5mm
Lead/Base Style
Straight
Leakage Current
3uA
Length
15mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
2000
Packaging
Bulk
Polarity
Polar
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Ripple Current
400mA
RoHS Compliant
Yes
Series
LXZ
Termination
Radial
Test Frequency
100MHz
Tolerance
20%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Compliance
RoHS
Compliant
Datasheet
United Chemi-Con ELXZ350ELL101MF15D Datasheet
Download the complete datasheet for United Chemi-Con ELXZ350ELL101MF15D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

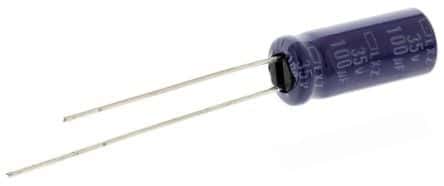

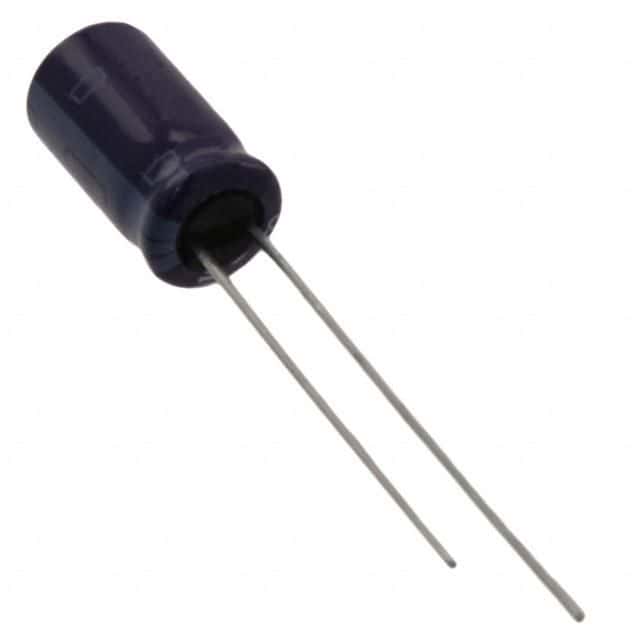

Product Images
