Aluminum electrolytic capacitor, 22µF capacitance, 50V DC rated voltage, 20% tolerance. Features a 6.3mm diameter, 5.2mm height, and 1.9mm lead pitch, with a 6.6mm width. Rated for 2000 hours at 85°C, offering 47mA ripple current and 3µA leakage current. Surface mountable with SMD/SMT termination, supplied in tape and reel packaging.
PackageRadial
Voltage50V
Capacitance22uF
Voltage Rating50V
Quick Jump:
Technical Specifications
United Chemi-Con EMVA500ADA220MF55G technical specifications.
General
| Capacitance | 22uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 6.3mm |
| Dielectric Material | Aluminium |
| Height | 5.2mm |
| Lead Diameter | 0.8mm |
| Lead Free | Lead Free |
| Lead Pitch | 1.9mm |
| Leakage Current | 3uA |
| Length | 5.2mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 47mA |
| Ripple Current (AC) | 47mA |
| RoHS Compliant | Yes |
| Series | MVA |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
United Chemi-Con EMVA500ADA220MF55G Datasheet
Download the complete datasheet for United Chemi-Con EMVA500ADA220MF55G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

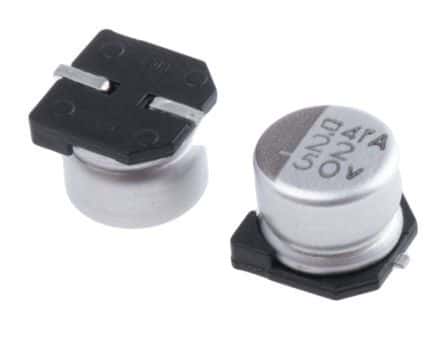

Product Images
