Aluminum electrolytic capacitor with 2.2µF capacitance and 63V DC voltage rating. Features 20% tolerance, 12mA ripple current, and an operating temperature range of -40°C to 85°C. Surface mountable cylindrical construction with 4mm diameter and 5.2mm height. Packaged on tape and reel for automated assembly.
PackageRadial
Capacitance2.2uF
Voltage Rating63V
MountingSurface Mount
Quick Jump:
Technical Specifications
United Chemi-Con EMVA630ADA2R2MD55G technical specifications.
General
| Body Diameter | 4mm |
| Capacitance | 2.2uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 4mm |
| Dielectric Material | Aluminium |
| Height | 5.2mm |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 12mA |
| Ripple Current (AC) | 12mA |
| RoHS Compliant | Yes |
| Series | MVA |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
| Width | 4.3mm |
Compliance
| RoHS | Compliant |
Datasheet
United Chemi-Con EMVA630ADA2R2MD55G Datasheet
Download the complete datasheet for United Chemi-Con EMVA630ADA2R2MD55G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

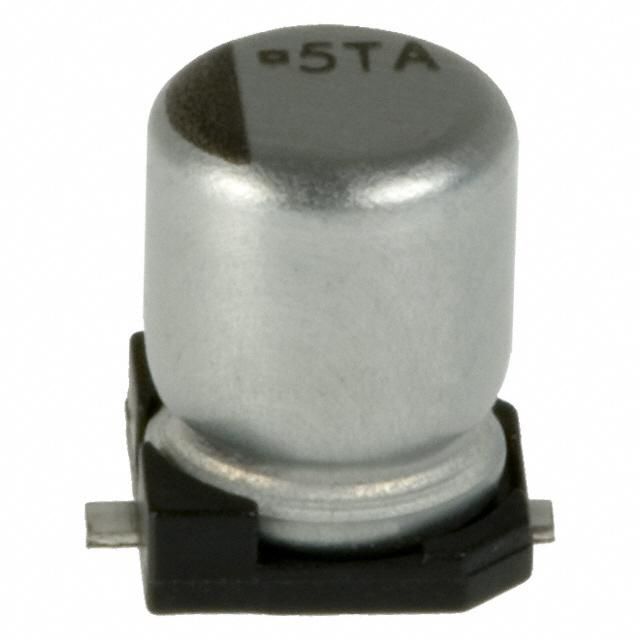

Product Images
