United Chemi-Con
EMVH500ARA101MKE0S
100uF 50V Aluminum Electrolytic Capacitor, 230mR ESR, 550mA Ripple, 125°C, SMD
Aluminum electrolytic capacitor, 100µF capacitance, 50V DC rated voltage, 20% tolerance. Features 230mΩ ESR at 100MHz, 550mA ripple current, and 4µA leakage current. Operates from -40°C to 125°C with a 5000-hour life rating. Surface mount, cylindrical construction with tin plating, measuring 12.5mm diameter and 13.5mm height.
PackageRadial
Voltage50V
Capacitance100uF
Voltage Rating50V
Quick Jump:
Technical Specifications
United Chemi-Con EMVH500ARA101MKE0S technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
Contact Plating
Tin
Depth
13mm
Diameter
12.5mm
Dielectric Material
Aluminium
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
230mR
Height
13.5mm
Height - Seated (Max)
0.531inch
Lead Free
Lead Free
Lead Pitch
4.2mm
Lead/Base Style
Straight
Leakage Current
4uA
Length
13.5mm
Life (Hours)
5000Hour
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
550mA
Ripple Current (AC)
550mA
RoHS Compliant
Yes
Series
MVH
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Width
13mm
Compliance
RoHS
Compliant
Datasheet
United Chemi-Con EMVH500ARA101MKE0S Datasheet
Download the complete datasheet for United Chemi-Con EMVH500ARA101MKE0S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

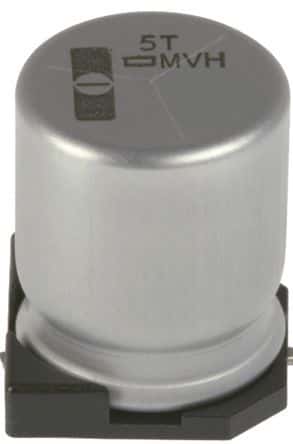

Product Images
