United Chemi-Con
EMVY101ARA101MKE0S
100uF 100V Radial Aluminum Electrolytic Capacitor, 105°C, 450mA Ripple
Polarized aluminum electrolytic capacitor with 100µF capacitance and 100V DC rated voltage. Features 20% tolerance, 330mΩ ESR, and 450mA ripple current at 100MHz. Operating temperature range from -40°C to 105°C. Cylindrical radial construction with tin contact plating, measuring 12.5mm diameter and 13.5mm height. Surface mount termination in tape and reel packaging.
PackageRadial
Voltage100V
Capacitance100uF
Voltage Rating100V
Quick Jump:
Technical Specifications
United Chemi-Con EMVY101ARA101MKE0S technical specifications.
General
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
Contact Plating
Tin
Diameter
12.5mm
Dielectric Material
Aluminium
Dissipation Factor
10%
ESR (Equivalent Series Resistance)
330mR
Height
13.5mm
Impedance
330mR
Lead Free
Lead Free
Lead/Base Style
Straight
Leakage Current
100uA
Length
0.53inch
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
200
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
450mA
Ripple Current (AC)
450mA
RoHS Compliant
Yes
Series
MVY
Termination
SMD/SMT
Test Frequency
100MHz
Tolerance
20%
Voltage
100V
Voltage Rating
100V
DC Rated Voltage
100V
Width
13mm
Compliance
RoHS
Compliant
Datasheet
United Chemi-Con EMVY101ARA101MKE0S Datasheet
Download the complete datasheet for United Chemi-Con EMVY101ARA101MKE0S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

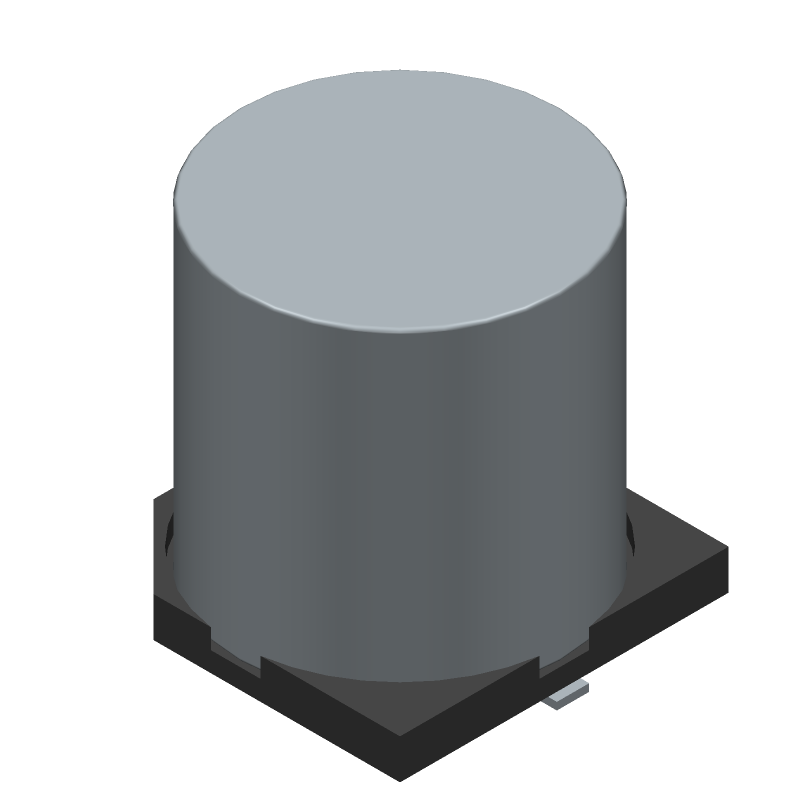

Product Images
