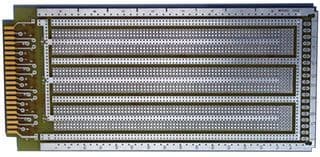

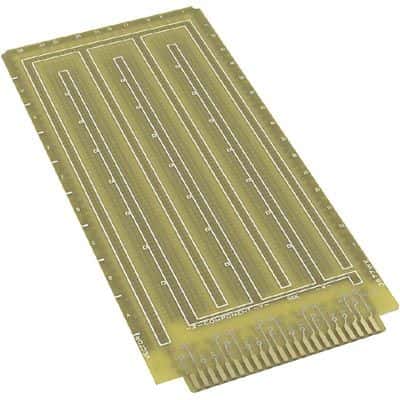

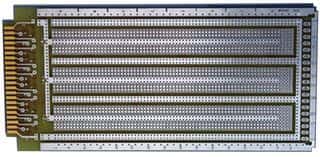

The Vectorbord Plugbord is a 44-contact edge-mounting board with a thickness of 1.57mm and a width of 114.3mm. It is made from a non-plated material and has a flammability rating of UL94 V-0. The board is 243.84mm in length and is not compliant with Reach SVHC regulations. It is part of the Vectorbord Plugbord series and is designed for use in development and prototyping applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vector Electronics 3677 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vector Electronics 3677 technical specifications.
| Board Thickness | 1.57mm |
| Package/Case | 062 |
| Flammability Rating | UL94 V-0 |
| Height | 1.57mm |
| Lead Free | Contains Lead |
| Length | 243.84mm |
| Mount | Edge |
| Number of Contacts | 44 |
| Plating | Non-Plated |
| Reach SVHC Compliant | No |
| Series | Vectorbord® Plugbord™ |
| Thickness | 1.57mm |
| Width | 114.3mm |
| RoHS | Compliant |
