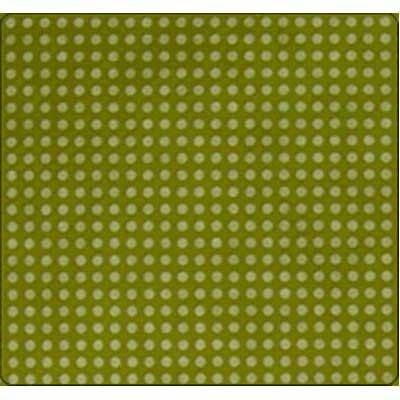

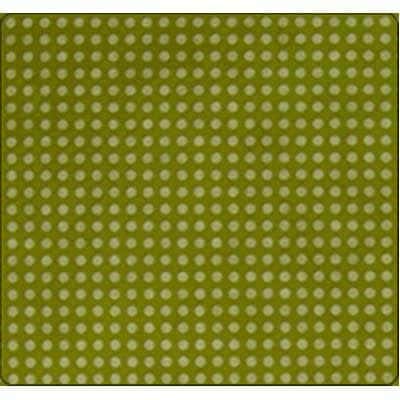

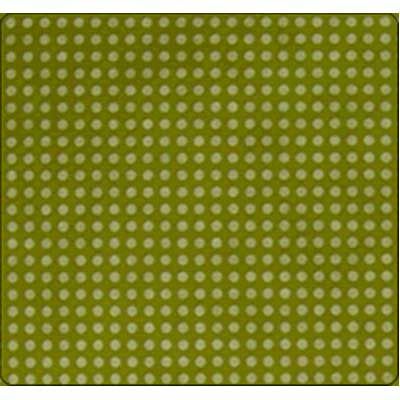

The 85H48WE is a 1.57mm thick breadboard from Vector Electronics, featuring an epoxy package with glass and epoxy contact material. It has a non-plated finish and meets the UL94 V-0 flammability rating. The board is lead-free and not Reach SVHC compliant. It is designed for use in development and prototyping applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vector Electronics 85H48WE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vector Electronics 85H48WE technical specifications.
| Board Thickness | 1.57mm |
| Package/Case | Epoxy |
| Contact Material | Glass, Epoxy |
| Flammability Rating | UL94 V-0 |
| Height | 1.57mm |
| Lead Free | Lead Free |
| Length | 121.9mm |
| Material | Glass, Epoxy |
| Mount | PCB |
| Plating | Non-Plated |
| Reach SVHC Compliant | No |
| Series | Vectorbord® |
| Thickness | 1.57mm |
| Width | 215.9mm |
| RoHS | Compliant |
