500W DC-DC power supply module featuring a single 48V output. Achieves 97.8% efficiency with a maximum output current of 10.42A. Operates within a 38V to 55V input voltage range and supports a wide temperature range from -40°C to 125°C. Includes UVLO protection and is designed for surface mount applications. This lead-free, RoHS compliant module measures 1.28 inches in length, 0.87 inches in width, and 0.26 inches in height.
PackageModule
MountingSurface Mount
Power500W
Quick Jump:
Technical Specifications
Vicor PRM48BF480T500A00 technical specifications.
General
Package/Case
Module
Efficiency
97.8%
Features
UVLO
Height
0.26inch
Lead Free
Lead Free
Length
1.28inch
Max Input Voltage
55V
Min Input Voltage
38V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
10.42A
Max Power Dissipation
500W
Mount
Surface Mount
Number of Outputs
1
Output Current
10.42A
Output Power
500W
Output Voltage
48V
Package Quantity
1
Packaging
Tray
RoHS Compliant
Yes
Series
VI Chip® PRM®
Voltage - Output 1
48V
Width
0.87inch
Compliance
RoHS
Compliant
Datasheet
Vicor PRM48BF480T500A00 Datasheet
Download the complete datasheet for Vicor PRM48BF480T500A00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

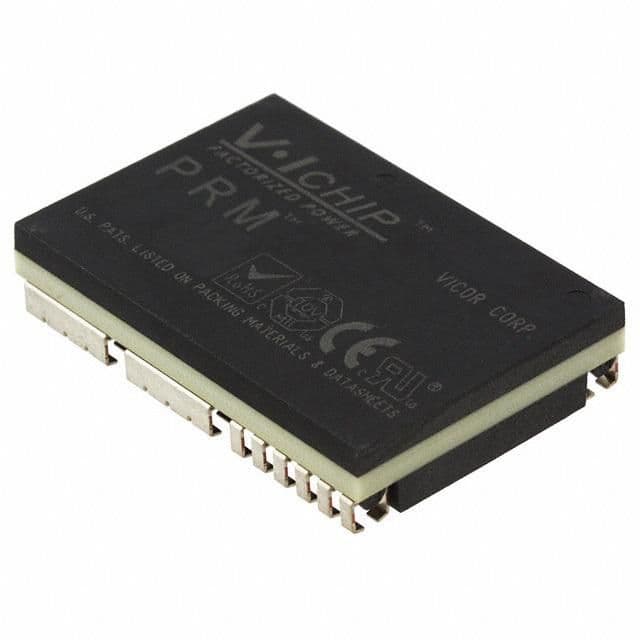

Product Images
