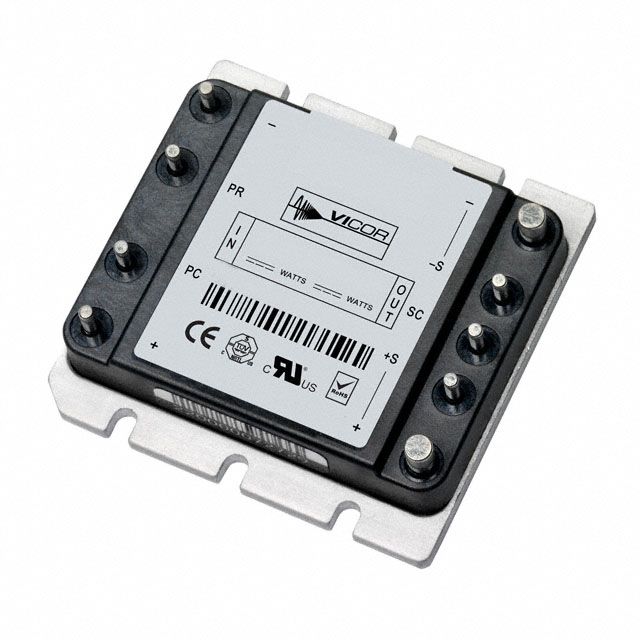

200W DC-DC regulated power supply module, board mount, hybrid construction. Features a single 48V output with a maximum output current of 4.17A. Operates within an input voltage range of 18V to 36V, offering 87.5% efficiency. Includes UVLO and OVP protection, with 3kV isolation. Dimensions are 2.28 inches in length, 2.2 inches in width, and 0.62 inches in height. Suitable for through-hole mounting and operates from -20°C to 100°C.
MountingThrough Hole
Power200W
Quick Jump:
Technical Specifications
Vicor V24B48C200BL technical specifications.
General
| Efficiency | 87.5% |
| Features | UVLO, OVP |
| Height | 0.62inch |
| Isolation | Isolated |
| Isolation Voltage | 3kV |
| Lead Free | Contains Lead |
| Length | 2.28inch |
| Max Input Voltage | 36V |
| Min Input Voltage | 18V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -20°C |
| Max Output Current | 4.17A |
| Max Power Dissipation | 200W |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Power | 200W |
| Output Voltage | 48V |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | No |
| Series | MINI |
| Voltage - Output 1 | 48V |
| Width | 2.2inch |
Compliance
| RoHS | Not Compliant |
Datasheet
Vicor V24B48C200BL Datasheet
Download the complete datasheet for Vicor V24B48C200BL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
