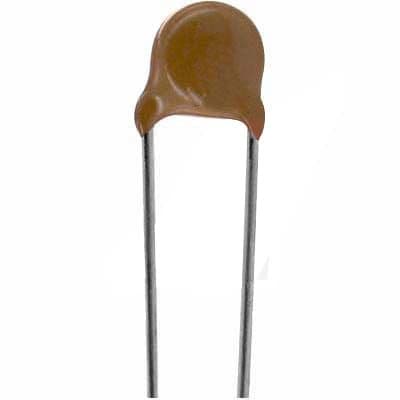

Radial leaded ceramic capacitor with 4.7nF capacitance and 20% tolerance. Features Y5V dielectric material, 400V DC rated voltage, and 125V AC rated voltage. Designed for through-hole PCB mounting with a 6.4mm lead pitch. Operating temperature range from -30°C to 125°C. RoHS compliant with a dissipation factor of 2%.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay 125LD47-R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 4.7nF |
| Case Code (Imperial) | 0508 |
| Case Code (Metric) | 1220 |
| Package/Case | Radial |
| Construction | RADIAL |
| Depth | 4.7mm |
| Diameter | 10.2mm |
| Dielectric | Y5V |
| Dielectric Material | Ceramic |
| Dissipation Factor | 2% |
| Height | 4.7mm |
| Lead Diameter | 0.81mm |
| Lead Free | Lead Free |
| Lead Pitch | 6.4mm |
| Lead/Base Style | Straight |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -30°C |
| Mount | Through Hole, PCB |
| Package Quantity | 250 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | X1, Y4 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 125L |
| Termination | Radial |
| Tolerance | 20% |
| Voltage | 400V |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| RoHS | Compliant |
