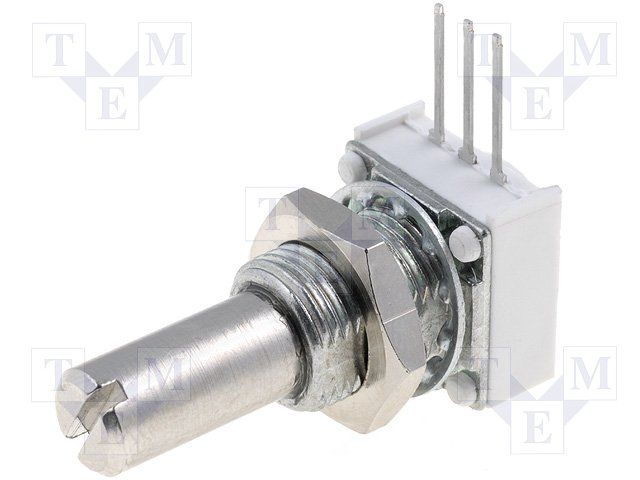

The Vishay 14910F0GJSX10503KA is a CERMET potentiometer with a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It is RoHS compliant and has a resistance of 50kR with a tolerance of 10%. The potentiometer is designed for through hole and panel mount applications and has a PCB mount package type.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Vishay 14910F0GJSX10503KA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Vishay 14910F0GJSX10503KA technical specifications.
| Capacitance | 0F |
| Contact Plating | Tin |
| Depth | 12.5mm |
| Length | 31.06mm |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Panel |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 50kR |
| Resistance Tolerance | 10% |
| RoHS Compliant | Yes |
| Technology | CERMET |
| Termination | Pin |
| Tolerance | 10% |
| Type | Potentiometer |
| DC Rated Voltage | 350V |
| RoHS | Compliant |
Download the complete datasheet for Vishay 14910F0GJSX10503KA to view detailed technical specifications.
