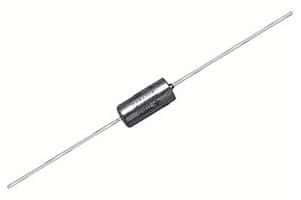

Solid tantalum capacitor with 1uF capacitance and 50V DC rated voltage. Features axial leaded construction with a metal package and tin-lead contact plating. Operating temperature range from -55°C to 125°C, with a dissipation factor of 2% and leakage current of 500nA. This polarized, general-purpose component is designed for through-hole mounting.
PackageMetal
Capacitance1uF
Voltage Rating50V
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay 150D105X9050A2B technical specifications.
General
| Capacitance | 1uF |
| Package/Case | Metal |
| Construction | AXIAL |
| Contact Plating | Tin, Lead |
| Diameter | 3.43mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 2% |
| Features | General Purpose |
| Lead Diameter | 0.51mm |
| Lead Free | Contains Lead |
| Leakage Current | 500nA |
| Length | 7.26mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 100 |
| Packaging | Bulk |
| Polarity | Polar |
| RoHS Compliant | No |
| Series | TANTALEX®, 150D |
| Termination | Axial |
| Tolerance | 10% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Not Compliant |
