Solid tantalum capacitor with 100µF capacitance and 20V DC rated voltage. Features 10% tolerance, 125°C maximum operating temperature, and 6% dissipation factor. Axial construction with tin-lead contact plating, 0.64mm lead diameter, and through-hole mounting. Operates from -55°C to 125°C with a leakage current of 10µA.
PackageMetal
Capacitance100uF
Voltage Rating20V
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay 150D107X9020S2B technical specifications.
General
| Capacitance | 100uF |
| Package/Case | Metal |
| Construction | AXIAL |
| Contact Plating | Tin, Lead |
| Depth | 8.92mm |
| Diameter | 8.92mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| Features | General Purpose |
| Lead Diameter | 0.64mm |
| Lead/Base Style | Straight |
| Leakage Current | 10uA |
| Length | 19.96mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Package Quantity | 25 |
| Packaging | Bulk |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | TANTALEX®, 150D |
| Termination | Axial |
| Tolerance | 10% |
| Voltage Rating | 20V |
| DC Rated Voltage | 20V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Vishay 150D107X9020S2B Datasheet
Download the complete datasheet for Vishay 150D107X9020S2B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

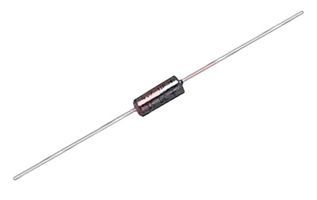

Product Images
