Solid tantalum capacitor with 10µF capacitance and 20V DC rated voltage. Features radial leaded, through-hole mounting for PCB applications. Operating temperature range from -55°C to 125°C with 8% dissipation factor and 10% tolerance. RoHS compliant and lead-free construction.
PackageDipped
Capacitance10uF
Voltage Rating20V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Vishay 199D106X9020C1V1E3 technical specifications.
General
| Capacitance | 10uF |
| Package/Case | Dipped |
| Construction | RADIAL |
| Diameter | 0.216inch |
| Dissipation Factor | 8% |
| Features | General Purpose |
| Height | 0.517inch |
| Lead Free | Lead Free |
| Lead Pitch | 2.54mm |
| Length | 0.36inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole, PCB |
| Package Quantity | 500 |
| Packaging | Bulk |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | TANTALEX®, 199D |
| Termination | Radial |
| Tolerance | 10% |
| Voltage Rating | 20V |
| DC Rated Voltage | 20V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay 199D106X9020C1V1E3 Datasheet
Download the complete datasheet for Vishay 199D106X9020C1V1E3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

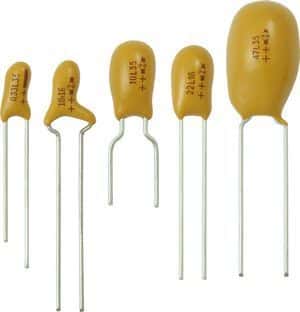

Product Images
