1kV, 1A through-hole switching diode in a DO-204AL package. Features a maximum forward surge current of 30A, a maximum reverse current of 5µA, and a reverse recovery time of 2µs. Operating temperature range from -65°C to 175°C. RoHS compliant with tin, matte contact plating.
PackageDO-204AL
Voltage400V
Current1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay 1N4007GP-E3/54 technical specifications.
General
| Average Rectified Current | 1A |
| Package/Case | DO-204AL |
| Contact Plating | Tin, Matte |
| Current | 1A |
| Diameter | 2.7mm |
| Forward Current | 1A |
| Height | 2.7mm |
| Lead Free | Lead Free |
| Length | 0.204inch |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1kV |
| Max Reverse Current | 5uA |
| Max Reverse Voltage (DC) | 1kV |
| Max Surge Current | 30A |
| Mount | Through Hole |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Recovery Time | 2us |
| Reverse Voltage | 1kV |
| RoHS Compliant | Yes |
| Series | SUPERECTIFIER® |
| Voltage | 400V |
| Width | 2.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay 1N4007GP-E3/54 Datasheet
Download the complete datasheet for Vishay 1N4007GP-E3/54 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

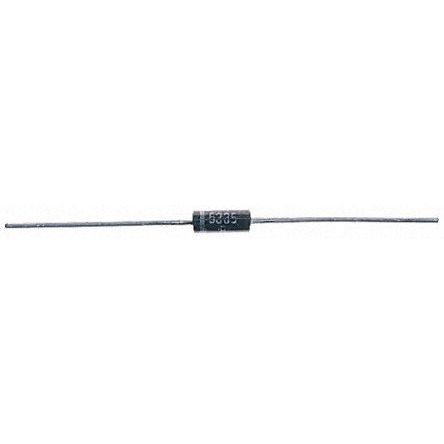

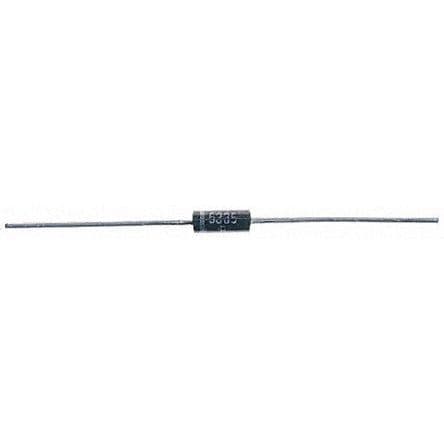

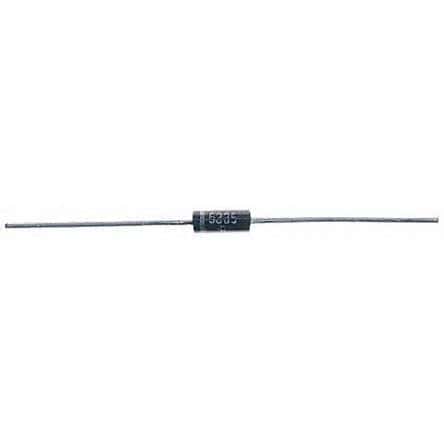

Product Images
