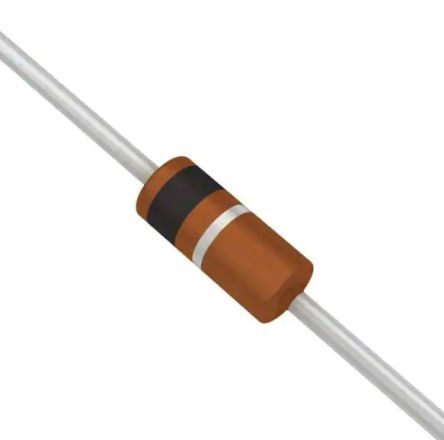

The 1N4148-TR is a general purpose rectifier diode with a maximum operating temperature of 175°C and a minimum operating temperature of -65°C. It has a maximum repetitive reverse voltage of 100V and a maximum forward surge current of 2A. The diode is available in a DO-35 package and is lead free. It is suitable for use in a variety of applications including power supplies and motor control circuits.
Checking distributor stock and pricing after the page loads.
Vishay 1N4148-TR technical specifications.
| Package/Case | DO-35 |
| Current Rating | 150A |
| Diameter | 1.75mm |
| Forward Current | 150mA |
| Lead Free | Lead Free |
| Length | 0.133inch |
| Max Forward Surge Current (Ifsm) | 2A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Mount | Through Hole, Surface Mount |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 2A |
| Power Dissipation | 500mW |
| Primary Type | SWITCHING |
| Reverse Recovery Time | 8ns |
| Reverse Recovery Time-Max | 4ns |
| RoHS Compliant | Yes |
| Voltage | 75V |
| RoHS | Compliant |
No datasheet is available for this part.
