Vishay
1N4148W-HE3-08
Rectifier Diode, 1 Element, 0.15A, 100V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-2
Capacitance4pF
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay 1N4148W-HE3-08 technical specifications.
General
Average Rectified Current
150mA
Capacitance
4pF
Forward Current
150mA
Height
1.35mm
Max Forward Surge Current (Ifsm)
500mA
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
350mW
Max Repetitive Reverse Voltage (Vrrm)
100V
Max Reverse Current
100uA
Max Reverse Voltage (DC)
75V
Max Surge Current
500mA
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
2A
Radiation Hardening
No
Reverse Recovery Time
4ns
Reverse Voltage
75V
Weight
0.000363oz
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay 1N4148W-HE3-08 Datasheet
Download the complete datasheet for Vishay 1N4148W-HE3-08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

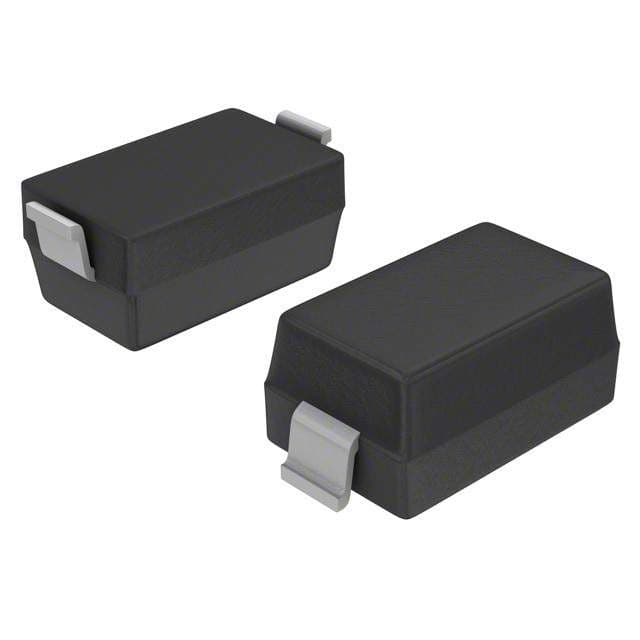

Product Images
