The 1N4148WS-G3-08 is a general purpose rectifier diode with a maximum reverse voltage of 75V and a maximum forward current of 150mA. It operates within a temperature range of -55°C to 150°C and has a reverse recovery time of 4ns. This diode is available in a surface mount package and is RoHS compliant. The 1N4148WS-G3-08 is suitable for use in a variety of applications requiring a reliable and efficient rectification solution.
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay 1N4148WS-G3-08 technical specifications.
General
| Average Rectified Current | 150mA |
| Forward Current | 150mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 100V |
| Max Reverse Voltage (DC) | 75V |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 350mA |
| Radiation Hardening | No |
| Reverse Recovery Time | 4ns |
| RoHS Compliant | Yes |
| Weight | 0.000152oz |
Compliance
| RoHS | Compliant |
Datasheet
Vishay 1N4148WS-G3-08 Datasheet
Download the complete datasheet for Vishay 1N4148WS-G3-08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

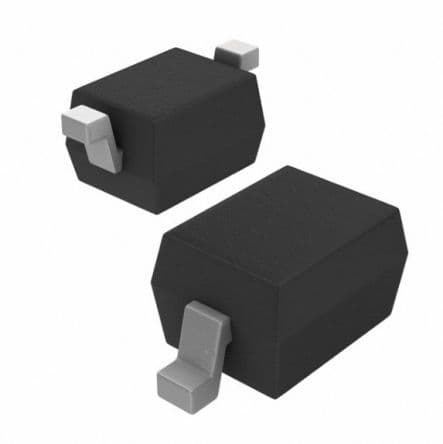

Product Images
