1W Zener Diode with a 33V Zener Voltage and 5% tolerance. Features a DO-41 glass package, through-hole mounting, and a maximum power dissipation of 1.3W. Operates across a temperature range of -65°C to 175°C with a maximum reverse leakage current of 5uA. RoHS compliant and lead-free.
PackageDO-41
Voltage Rating33V
MountingThrough Hole
Power1.3W
Quick Jump:
Technical Specifications
Vishay 1N4752A-TR technical specifications.
General
| Package/Case | DO-41 |
| Diameter | 2.6mm |
| Impedance | 45R |
| Lead Free | Lead Free |
| Material | Glass |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 1.3W |
| Max Reverse Current | 5uA |
| Max Reverse Leakage Current | 5uA |
| Mount | Through Hole |
| Output Current | 3.3A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.3W |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| DC Rated Voltage | 33V |
| Voltage Tolerance | 5% |
| Working Voltage | 33V |
| Zener Current | 27mA |
| Zener Voltage | 33V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay 1N4752A-TR Datasheet
Download the complete datasheet for Vishay 1N4752A-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

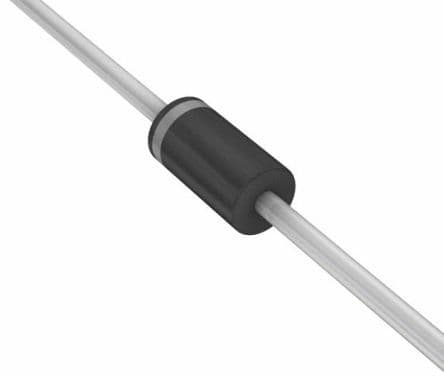

Product Images
