PackageDO-204AL
Current Rating1A
Quick Jump:
Technical Specifications
Vishay 1N5817-E3/1 technical specifications.
General
Package/Case
DO-204AL
Current Rating
1A
Forward Current
1A
Max Forward Surge Current (Ifsm)
25A
Max Operating Temperature
125°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
20V
Max Reverse Leakage Current
1mA
Max Surge Current
25A
Package Quantity
5000
Packaging
Bulk
Peak Non-Repetitive Surge Current
25A
Radiation Hardening
No
Compliance
RoHS
Compliant
Datasheet
Vishay 1N5817-E3/1 Datasheet
Download the complete datasheet for Vishay 1N5817-E3/1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

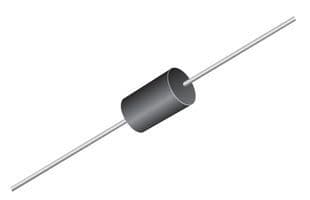

Product Images
