Unidirectional TVS Diode, 1.5kW peak pulse power dissipation, 16.5V clamping voltage, and 14.1V minimum breakdown voltage. Features a 12V reverse standoff voltage and 2µA maximum reverse leakage current. Designed for through-hole mounting with tin, matte contact plating. Operates across a -55°C to 175°C temperature range. RoHS compliant.
MountingThrough Hole
PolarityUnidirectional
Power1.5kW
Quick Jump:
Technical Specifications
Vishay 1N6376-E3/54 technical specifications.
General
| Clamping Voltage | 16.5V |
| Clamping Voltage-Max | 16.1V |
| Contact Plating | Tin, Matte |
| Diode Type | ZENER |
| Direction | Unidirectional |
| ESD Protection | No |
| Lead Free | Lead Free |
| Leakage Current | 2uA |
| Min Breakdown Voltage | 14.1V |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.5kW |
| Max Reverse Leakage Current | 2uA |
| Max Surge Current | 200A |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 12V |
| Package Quantity | 1400 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 70A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Dissipation | 1.5kW |
| Power Line Protection | No |
| Reverse Breakdown Voltage | 14.1V |
| Reverse Standoff Voltage | 12V |
| RoHS Compliant | Yes |
| Series | TransZorb® |
Compliance
| RoHS | Compliant |
Datasheet
Vishay 1N6376-E3/54 Datasheet
Download the complete datasheet for Vishay 1N6376-E3/54 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

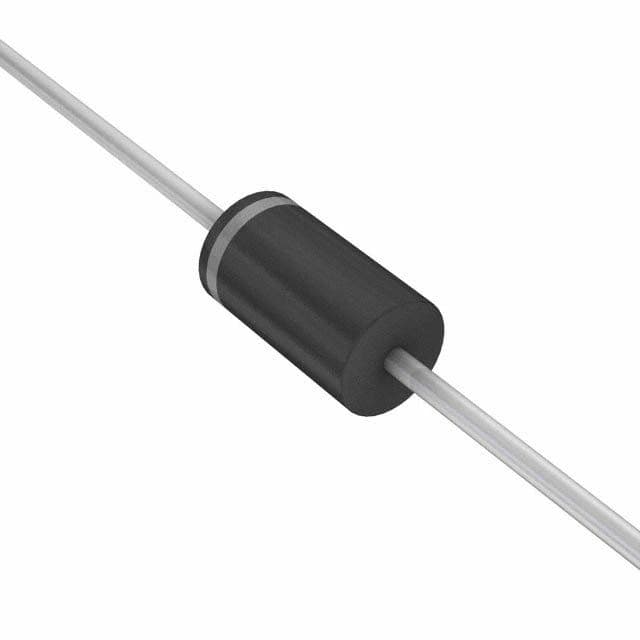

Product Images
