Solid tantalum capacitor, 10µF capacitance, 10V DC rated voltage, 20% tolerance. Features a 1206 surface mount case code (3.2mm x 1.6mm x 1.8mm) with a maximum operating temperature of 125°C. Offers 3.4Ω ESR, 1µA leakage current, and 150mA ripple current. RoHS compliant and polarized for general-purpose applications.
Package1206
Capacitance10uF
Voltage Rating10V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Vishay 293D106X0010A2TE3 technical specifications.
General
Capacitance
10uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Depth
1.6mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
3.4R
Features
General Purpose
Height
1.8mm
Lead Free
Lead Free
Leakage Current
1uA
Length
3.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
150mA
RoHS Compliant
Yes
Series
TANTAMOUNT®, 293D
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
10V
DC Rated Voltage
10V
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Vishay 293D106X0010A2TE3 Datasheet
Download the complete datasheet for Vishay 293D106X0010A2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

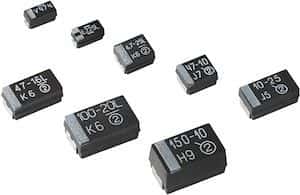

Product Images
