Solid tantalum capacitor, 10µF capacitance, 6.3V DC rated voltage, 10% tolerance. Features a 1206 surface mount case code with a 3.2mm length, 1.6mm width, and 1.6mm height. Operating temperature range from -55°C to 125°C, with a maximum ripple current of 150mA and 600nA leakage current. This RoHS compliant component offers 3.4Ω ESR and is supplied on tape and reel.
Package1206
Voltage6.3V
Capacitance10uF
Voltage Rating6.3V
Quick Jump:
Technical Specifications
Vishay 293D106X96R3A2TE3 technical specifications.
General
Capacitance
10uF
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Depth
1.6mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
3.4R
Features
General Purpose
Height
1.6mm
Height - Seated (Max)
0.071inch
Lead Free
Lead Free
Leakage Current
600nA
Length
3.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Q Factor
6
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
150mA
RoHS Compliant
Yes
Series
TANTAMOUNT®, 293D
Termination
SMD/SMT
Tolerance
10%
Voltage
6.3V
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Vishay 293D106X96R3A2TE3 Datasheet
Download the complete datasheet for Vishay 293D106X96R3A2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

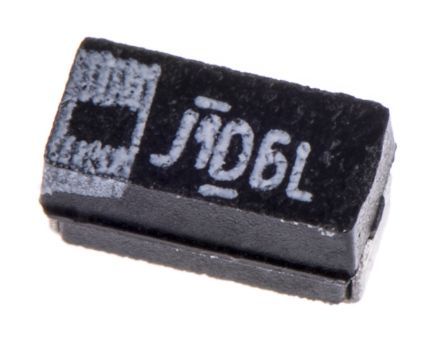

Product Images
