Solid tantalum capacitor, 10µF capacitance, 6.3V DC rated voltage, 20% tolerance. Features a 1411 (3528 metric) surface mount case code, 2.8mm depth, 1.9mm height, and 1.9mm width. Operates from -55°C to 125°C with a 600nA leakage current and 2.9Ω ESR. RoHS compliant, polarized, and designed for general-purpose applications.
Package1411
Capacitance10uF
Voltage Rating6.3V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Vishay 293D106X96R3B2TE3 technical specifications.
General
Capacitance
10uF
Case Code (Imperial)
1411
Case Code (Metric)
3528
Package/Case
1411
Construction
Flat
Depth
2.8mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
2.9R
Features
General Purpose
Height
1.9mm
Lead Free
Lead Free
Leakage Current
600nA
Length
3.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Polar
Q Factor
6
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
150mA
RoHS Compliant
Yes
Series
TANTAMOUNT®, 293D
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
6.3V
DC Rated Voltage
6.3V
Width
1.9mm
Compliance
RoHS
Compliant
Datasheet
Vishay 293D106X96R3B2TE3 Datasheet
Download the complete datasheet for Vishay 293D106X96R3B2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

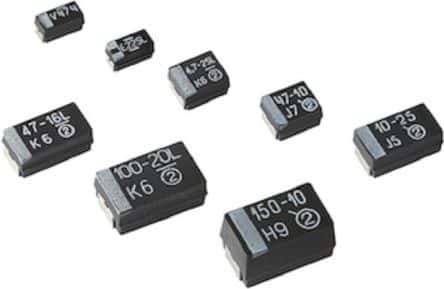

Product Images
