Solid Tantalum Capacitor, 100µF capacitance, 16V DC rated voltage, and 10% tolerance. Features a 7343 metric case size (2917 imperial), 4.3mm depth, 4mm height, and 7.3mm length. Offers 600mΩ ESR, 16µA leakage current, and 500mA ripple current. Operates from -55°C to 125°C, with surface mount termination and tape and reel packaging.
Package2917
Voltage16V
Capacitance100uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Vishay 293D107X9016E2TE3 technical specifications.
General
Capacitance
100uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
600mR
Features
General Purpose
Height
4mm
Height - Seated (Max)
0.17inch
Lead Free
Lead Free
Leakage Current
16uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
500mA
RoHS Compliant
Yes
Series
TANTAMOUNT® 293D
Termination
SMD/SMT
Tolerance
10%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Weight
0.023634oz
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Vishay 293D107X9016E2TE3 Datasheet
Download the complete datasheet for Vishay 293D107X9016E2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

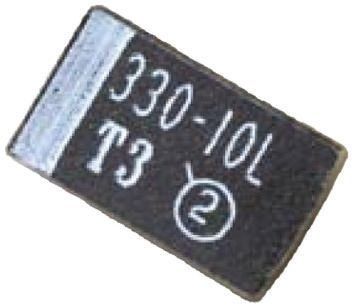

Product Images
