150µF, 10V solid tantalum capacitor with 10% tolerance. Features 600mΩ ESR, 15µA leakage current, and 500mA ripple current. Operating temperature range from -55°C to 125°C. Surface mountable in a 7343-31 (2917) D case measuring 7.3mm x 4.3mm x 2.8mm. Packaged on tape and reel.
Package2917
Capacitance150uF
Voltage Rating10V
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Vishay 293D157X9010D2TE3 technical specifications.
General
Capacitance
150uF
Case Code (Imperial)
2917
Case Code (Metric)
7343
Package/Case
2917
Construction
Flat
Depth
4.3mm
Dielectric Material
Tantalum
Dissipation Factor
8%
ESR (Equivalent Series Resistance)
600mR
Features
General Purpose
Height
2.8mm
Height - Seated (Max)
0.122inch
Lead Free
Lead Free
Leakage Current
15uA
Length
7.3mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
500
Packaging
Tape and Reel
Polarity
Polar
Q Factor
8
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
500mA
RoHS Compliant
Yes
Series
TANTAMOUNT® 293D
Termination
SMD/SMT
Tolerance
10%
Voltage Rating
10V
DC Rated Voltage
10V
Width
0.169inch
Compliance
RoHS
Compliant
Datasheet
Vishay 293D157X9010D2TE3 Datasheet
Download the complete datasheet for Vishay 293D157X9010D2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

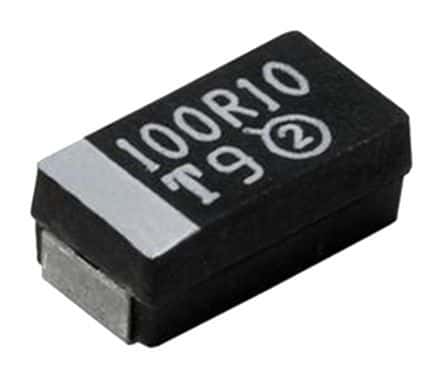

Product Images
