Solid Tantalum Capacitor, 2.2µF capacitance, 35V DC rated voltage, 10% tolerance. Features 3.8Ω ESR, 150mA ripple current, and 800nA leakage current. Operates from -55°C to 125°C. Surface mountable with dimensions of 3.5mm (L) x 2.8mm (D) x 1.9mm (H). Packaged in tape and reel.
Package1411
Voltage35V
Capacitance2.2uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Vishay 293D225X9035B2TE3 technical specifications.
General
Capacitance
2.2uF
Case Code (Imperial)
1411
Case Code (Metric)
3528
Package/Case
1411
Depth
2.8mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
3.8R
Features
General Purpose
Height
1.9mm
Height - Seated (Max)
0.083inch
Lead Free
Lead Free
Leakage Current
800nA
Length
3.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount, PCB
Package Quantity
1
Packaging
Tape and Reel
Polarity
Polar
Q Factor
6
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
150mA
RoHS Compliant
Yes
Series
TANTAMOUNT® 293D
Termination
SMD/SMT
Tolerance
10%
Voltage
35V
Voltage Rating
35V
DC Rated Voltage
35V
Width
0.11inch
Compliance
RoHS
Compliant
Datasheet
Vishay 293D225X9035B2TE3 Datasheet
Download the complete datasheet for Vishay 293D225X9035B2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

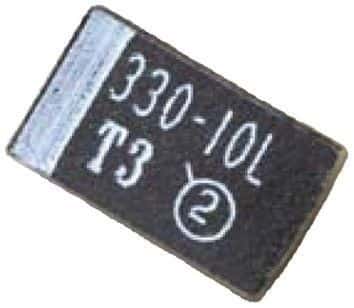

Product Images
