Solid, polarized tantalum capacitor with 22µF capacitance and 25V DC rated voltage. Features a 2917 (7343 metric) surface mount chip package with dimensions of 7.3mm length, 4.3mm depth, and 2.8mm width/height. Offers 700mΩ ESR, 5.5µA leakage current, and 300mA ripple current. Operating temperature range from -55°C to 125°C, with RoHS compliance.
Package2917
Voltage25V
Capacitance22uF
Voltage Rating25V
Quick Jump:
Technical Specifications
Vishay 293D226X9025D2TE3 technical specifications.
General
| Capacitance | 22uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Depth | 4.3mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 700mR |
| Features | General Purpose |
| Height | 2.8mm |
| Lead Free | Lead Free |
| Leakage Current | 5.5uA |
| Length | 7.3mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Q Factor | 6 |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 300mA |
| RoHS Compliant | Yes |
| Series | TANTAMOUNT®, 293D |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 25V |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay 293D226X9025D2TE3 Datasheet
Download the complete datasheet for Vishay 293D226X9025D2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

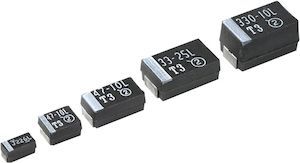

Product Images
